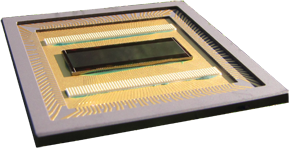

Monolithic multi-channel mass spectroscopy sensor
- Imagerlabs wide spectrum monolithic CMOS ION Detection technology received the 2011 R&D 100 Award.
- The only wide spectrum monolithic CMOS ion sensor on the market (simplifies instrument manufacturing)
- Simultaneous detection of multiple masses for High Speed analysis
- Nearly 100% duty cycle for all masses of interest provide much higher sensitivity compared to single channel device. (LOD < 1 ppt! (Limit Of Detection < 1 Parts Per Trilion))
- Simultaneous integration of all masses and low noise yield ultra-high precision ratio analysis (~2 ions noise with over sampling)
- Non destructive signal sampling enables real time signal buildup monitoring for optimal use of dynamic range
- Independent channel gain control and non-destructive signal readout provide overall linear dynamic range > 10e9
- Monolithic technology can provide channel pitch as small as 10µm
- Up to 20,000 parallel channels provide extended mass spectrum detectability
- Extreme flatness & sensor height control to < 50µm (crucial for achieving optimal ion focus over the entire mass range)
- Ultra low power for portable applications
